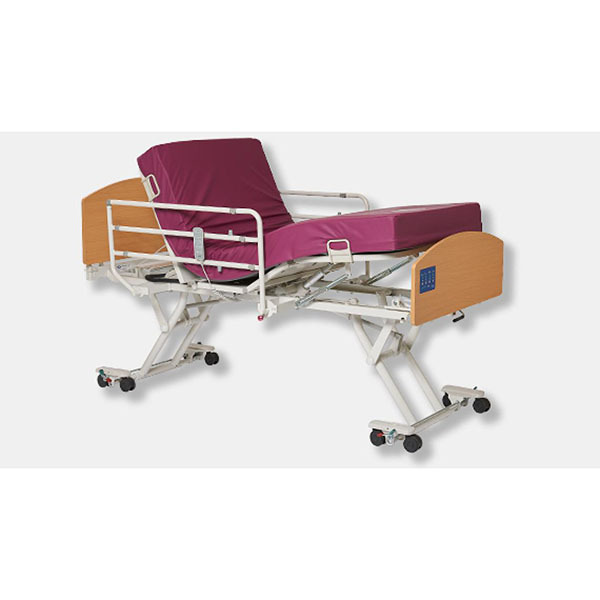

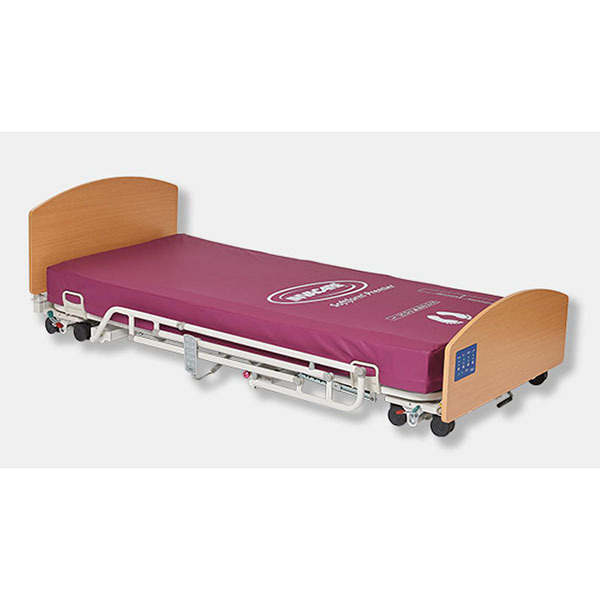

The Invacare CS8 bed is an electrically actuated floor line care bed with a range of functions and positional movements that assist caregivers and provide for patient comfort.Ease of
use, functionality, serviceability and cleaning practicality are key features of the bed.

The bed has a fabricated steel structure with a powder coated finish. The plastic components are made from urethane, PP, POM, nylon and ABS plastic.
Clinical Applications and Area of Use:
The bed is appropriate for adult patient care under supervised medical monitoring and provides support with various positioning options.

Size Options:

  • Single
  • King Single

Specifications:

Code IC-W420-08-V2
Name CS8 Floorline Bed - Single
Overall Length 211cm
Overall Length(base extension extended) 230.5cm
Overall Width 92cm
Overall Width(rails fitted) 100cm
Mattress Surface Length(between panels) 199.5cm
Bed Plateform Height Range 15cm to 68cm
Back Rest Angle Adjustment 0 to 65 degree
Knee Bend Angle Adjustment 0 to 35 degree
Trendelenberg Tilt Adjustment(head and foot down) 0 to 14 degree
Bed Weight With Out Side Rails 119kg
Bed Weight With Side Rails 138kg
Safe Working Load 250 kg
